Profile

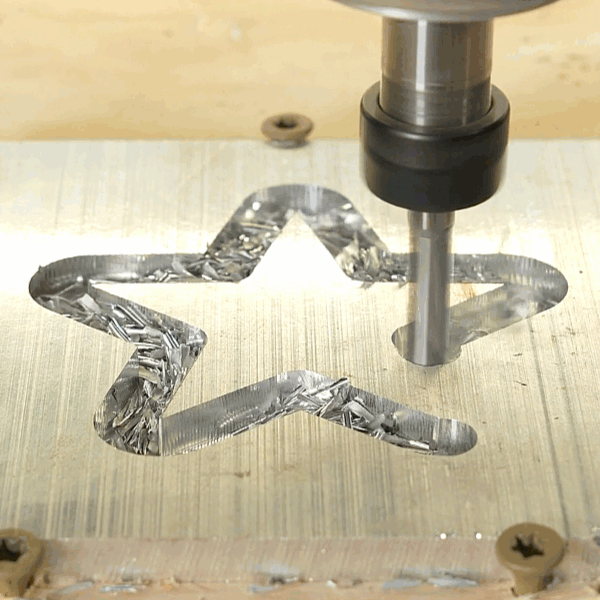

Profile operations tell your router to follow a path defined by the outlines of vector graphics. You can choose to set the path to the outside, inside, or directly centered on the outline.

The outcome of a Profile operation depends on your choice of tool and settings. You can use tools with special geometry to achieve interesting carving effects, or use a standard End Mill and a sufficient Final Depth to cut through your stock.

Profile Mode Settings¶

Click any option in the image below to jump directly to the relevant section for that option, or scroll down for a list of options and descriptions.

Sections that have special settings for Profile operations are listed just below, while common settings that apply similarly to most or all other types of operations are listed toward the bottom.

Note

For information on options that are unique to other types of operations, see Other Operations, below.

Profile Side¶

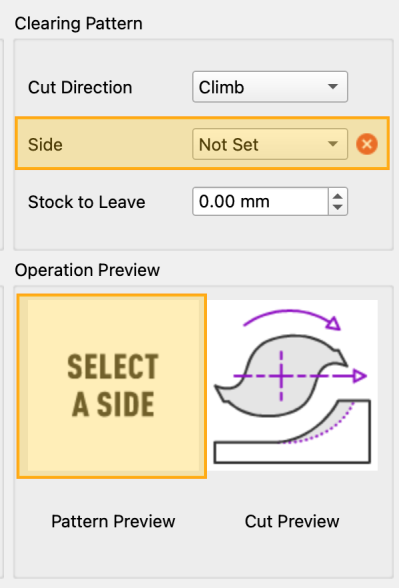

Profile Side determines the path MillMage will command your router to travel during carving moves, relative to the original vector graphics in your project.

Along Line tells the router to travel a path that corresponds exactly to the original vector graphics, meaning your tool will be directly centered on the line.
Inside shifts the path MillMage tells your router to travel by half the diameter of your chosen tool, in toward the center of vector graphics.
Outside will shift the path MillMage tells your router to travel by half the diameter of your chosen tool, out away from the outlines of vector graphics.

Using Inside and Outside¶

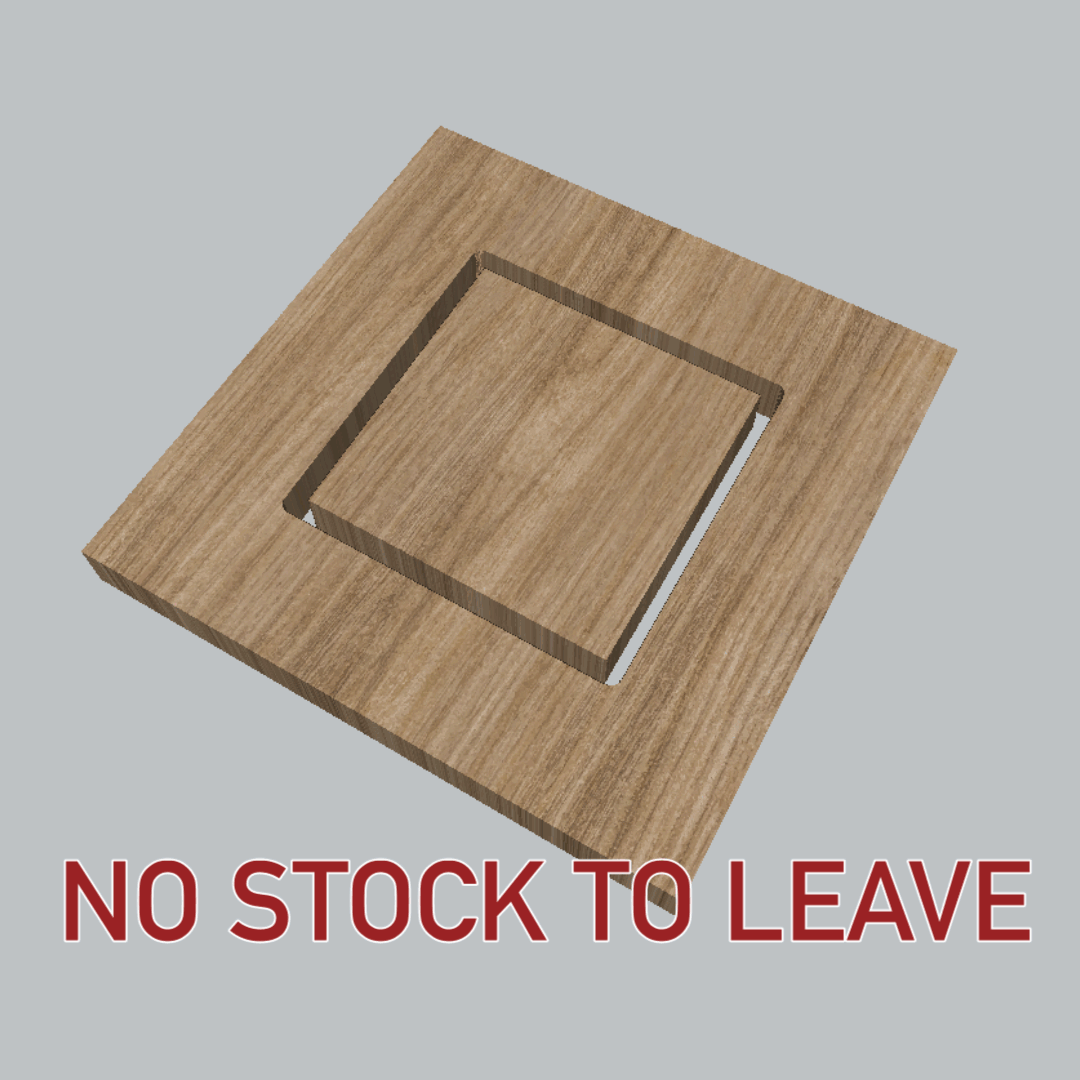

You can use the Inside and Outside options to compensate for the thickness of your tool when cutting parts. Shifting the cutting path by half the diameter of your chosen tool results in a finished product that is true to the size of your graphics in MillMage.

In general, you'll want shift the path in the direction of the material that you'll be discarding. In other words, if you want to keep the piece inside the shape, set Profile Side to Outside. If you want to keep the piece outside the shape, set it to Inside.

In cases when an outer and inner shape are set to the same Profile operation, MillMage adjust output intelligently, shifting the inner and outer paths in opposite directions.

Open vs. Closed Shapes

Because MillMage must determine the inside and outside of a shape to adjust the cutting path, both Inside and Outside will only work with shapes that are closed. A shape is closed when it is a complete, continuous loop whose start and end points are the same. When a shape's start and end points are different, it is open.

See Open vs. Closed Shapes for more information on the difference between open and closed shapes.

Depths and Entry¶

Equation Support and Automatic Unit Conversion

The Depths and Entry/Steps fields in the Operation Settings Editor support equations and automatic unit conversion.

For example:

To cut to a final depth of ¼ in, type 1/4 in the Diameter field, then click in another field, and MillMage will convert to the value to 0.75.

Addition (+), subtraction (-), and multiplication (*), are all also supported.
If your display units are set to metric but you've taken measurements in imperial, you can enter 1/4 in and MillMage will convert the value to 6.350 mm. This works in reverse as well, converting metric units to imperial

Multiple notations are supported, including ft, ', ", and mm.

Start Depth¶

The depth, relative to the surface of your stock, at which the operation will begin carving or cutting.

A value of 0 means it will begin at the top of your material — any value greater than 0 will tell your router to begin carving below the surface of the material.

Final Depth¶

The depth, relative to the surface of your stock, at which the operation will stop carving or cutting.

Final Depth is the total depth of the material that will be removed from your stock.

Depth Per Pass¶

Specifies the depth of material to be cleared with each pass of your router. The total number of passes is equal to Final Depth / Depths Per Pass.

For example, if you set Depth Per Pass to 1 mm, and Final Depth to 10 mm, your router will make 10 passes of 1 mm each.

Entry Type¶

Entry Type controls the motion of your router as it lowers into your material down.

For Zig Zag Ramp and Plunge entries, the router lowers to the depth set in the Depth Per Pass, as it begins carving.

For Spiral entires, rather than lowering to a set height before proceeeding to the next pass, the router is continually lowered in a spiral pattern for the duration of the operation.

Plunge¶

Lowers the router straight-down along the Z Axis into the material, before the router moves in X or Y. The same Plunge movement is repeated as the router lowers for each subsequent pass.

Zig Zag Ramp¶

Lowers the router along the Z Axis into the material, while also making lateral movements along the X or Y axis, meaning the tool enters at an angle — the exact angle is determined by the Ramp Angle setting.

The same Zig Zag movement is repeated as the router lowers for each subsequent pass.

The router makes a straight down movement in Z before beginning the ramped entry.

Ramp Angle¶

Controls the angle at which your tool will enter the material, if you’ve selected Zig Zag Ramp as your Entry Type.

Spiral¶

Constantly lowers the router into the material in a spiral pattern in X, Y, and Z, for the duration of the Profile operation.

The router makes a straight down movement in Z before beginning the spiral entry.

Tabs / Bridges¶

Tabs are small sections of cuts that the machine is commanded to skip, used to prevent objects from coming free from the base material during cutting.

Warning

Proper use of tabs is essential for preventing objects from flying out of your material at high speeds, resulting in damage to your project, machine, or self.

When sized appropriately, the tabs can be broken with minimal force and the objects removed from the material after the job is finished cutting. You may need to use a wood chisel to remove the tabs, or to sand down remnants of the tabs after removal.

You can create tabs manually using the Add Tabs tool, or MillMage can generate them automatically using the Tab Wizard found in the Operations Window.

Enable / Disable¶

The switch next to Tabs / Bridges controls whether tabs are enabled for the layer.

Switch Tabs / Bridges off to disable tabs. Tab settings and placement are not lost when this switch is turned off, and are restored exactly as they were if it is switched on again.

Tab Type¶

Use the Tab Type dropdown menu to select from one of three options.

Full Retract¶

Tells your router to lift back above the surface of your material when skipping over tabs. This results in tabs that are completely untouched by the router, and flush with the surface of the material.

Partial Retract¶

Allows you to specify a Tab Height for your tabs. Your router will continue carving all of your material until it reaches the specified height. After that height, when the router reaches parts of a path designated for tabs, it will retract to the specified Tab Height and then skip over tabs.

For example, if your stock is 10 mm thick, and you set a Tab Height of 5 mm, your router will engrave 5 mm of material above each tab, then skip the tabs for the last 5 mm of depth.

Ramp¶

Works similarly to Partial Retract, but instead of retracting to the specified Tab Height when it reaches a tab, your router will continue carving at an angle, moving upward until it reaches the Tab Height.

The angle of the Ramp is determined by the relationship between Tab Size and Tab Height. Longer tabs and lower heights can accommodate more gradual angles than shorter tabs and greater heights.

Tab Size¶

Tab Size defines the total length of each tab, in the currently configured system unit type (mm or inch). The router will skip carving for this distance.

Tab Height¶

Tab Height is only available when Tab Type is set to Partial Retract or Ramp.

See above for more information on the interaction of this setting with those Tab Types.

Common Settings¶

Click here for information on settings that apply similarly to all types of operations

Name¶

Use this field to edit the display name of the operation in the Operations Window. By default, all operations will be named according to their type.

Paint Color¶

Click the Paint Color button to open the Select Color window, which controls the color by which the operation will be indicated in the Preview window, if Show paint colors is enabled.

You can choose from a number of Basic Colors presented at the top left of the window, or create a custom color.

To create a custom color:

Press Pick Screen Color to hover your cursor over any color on your screen. Click to select the color you're hovering over.
Use the color gradient and shading slider at the top right.
Adjust numeric or hexidecimal values at the bottom right to create a custom color.
After creating a custom color, click Add to Custom Colors to save it for future use.

Click OK to apply the color to your operation, or Cancel to exit the window thout applying the color.

Output¶

Controls whether the operation will be sent to your CNC when you Preview your project, press the Start button in the Job Control Window, or save your project in GCode format.

Auto Use Layer¶

Enable this switch to automatically apply this operation to all shapes set to a given layer. Designate the layer by clicking the button to the right of the switch.

Note

When Auto User Layer is enabled, you can still Assign Operations to graphics set to any other layer, as normal, but all graphics assigned to the chosen layer will also have the Operation applied to them.

Tool Setup¶

Select Tool¶

Press the Select Tool button to open your Tool Library and select a tool to assign to the operation.

MillMage will automatically filter for appropriate tools for the type of operation you've selected. Some operations require specific tool geometries — if a tool's geometry is not appropriate for the type of operation you've selected, it will be unlisted and not selectable.

Tool Information¶

The remaining fields in this section display information about your selected tool, as entered in the Tool Library.

Tool Name¶

The name you gave the chosen tool in the Tool Library.

Diameter¶

The diameter of the cutting edge of your tool.

Cut Length¶

The length of the cutting edge of the chosen tool, from the top to the bottom of all flutes.

# of Flutes¶

The number of flutes on the chosen tool.

Feeds and Speeds¶

The Feeds and Speeds saved to a given tool from your Tool Library are automatically entered in the Operation Settings Editor when you select that tool.

What Feeds and Speeds should I use?

The proper Feed and Speed settings depend on your tool, machine, material, and use case. In short: there's no easy answer to that question.

For specific recommendations, the best resource is usually the manufacturer of your machine or tool.

Feed Rate¶

Controls the speed at which your CNC will move laterally (along the X and Y axes) during operations.

Ramp Rate¶

Controls the speed at which your CNC will move vertically (along the Z Axis) during ramp movements.

Spindle Speed¶

Controls the speed at which your router will rotate your tool.

Note

Not all CNCs allow Spindle Speed control through software. Some have routers which must be adjusted manually.

Plunge Rate¶

Controls the speed at which your CNC will move vertically (along the Z Axis) during plunge movements.

Cut Direction¶

Controls the direction your router will move while carving.

Conventional milling moves the router against the rotation of the spindle.
Climb milling moves the router in the same direction as the spindle rotates.

Coolant and Vacuum¶

Enable Vacuum¶

Enable this setting to automatically turn on your vacuum system when this operation begins.

This option requires a vacuum system that is connected to your CNC's controller.

Enable Coolant¶

Enable this setting to automatically turn on your coolant system when this operation begins.

This option requires a coolant system that is connected to your CNC's controller.

Other Operations¶

All types of operations are listed below. Select an operation to learn more about the settings available for that type of operation.

Pocket

Tells your router to carve the entire area inside the outline of a single closed shape, or between the outlines of multiple closed shapes that are set within one another.

Rest Pocket

Tells your router to carve only the space within a single closed shape, or between outlines of multiple closed shapes that are set within one another, that a larger Clearing tool could not reach in a previous Pocket operation.

Profile

Tells your router to carve a path along the outlines of geometry in your project.

Chamfer

Tells your router to carve angled edges along the outlines of closed shapes in your project. This operation require use of a V-Bit.

Dogbone Slot

A special type of operation that works similarly to Profile mode, but adjusts the geometry of your shapes to allow interlocking CNCed parts to fit together.

Drill

Tells your router to carve directly down, at the center of the shape the Drill operation is assigned to.

Female Pocket

A special type of operation that works similarly to Pocket mode, but adjusts the geometry of your shape to be slightly larger, to allow fitted inlays to fit more easily.

Male Inlay

A special type of operation that works similarly to Profile mode, but adjusts the geometry of your shape to be smaller, to allow fitted inlays to fit more easily.

For more help using MillMage, please visit our forum to talk with MillMage staff and users, or email support.
