Customizing the MillMage Window
LightBurn Video
This video features our sister software, LightBurn. While there may be slight differences in appearance and layout, the demonstrated processes are similar in MillMage.
The MillMage layout is highly customizable — you can choose which windows and toolbars to expose and hide, or undock, move, and re-dock them to a location other than their default position.
Enabling and Disabling UI Elements¶
Use the Window Menu to enable or disable any toolbar or window in MillMage. Several windows are not shown by default, and you'll need to enable them in order to access the tools and options they contain.
Enabled windows and toolbars have checkmarks next to their names, and disabled windows do not.
Click any unchecked window or toolbar in the list to enable it.
Click any checked window or toolbar to disable it. You can also click the X in the upper right corner of any window to disable it.
Right-Click Context Menu¶
Right-click over any toolbar, or over the top bar of any window, to open a window and toolbar selection context menu. Just as in the Window Menu, enabled windows and toolbars have checkmarks next to their names, and disabled windows do not. Click any unchecked window or toolbar to enable it, and any checked window or toolbar to disable it.

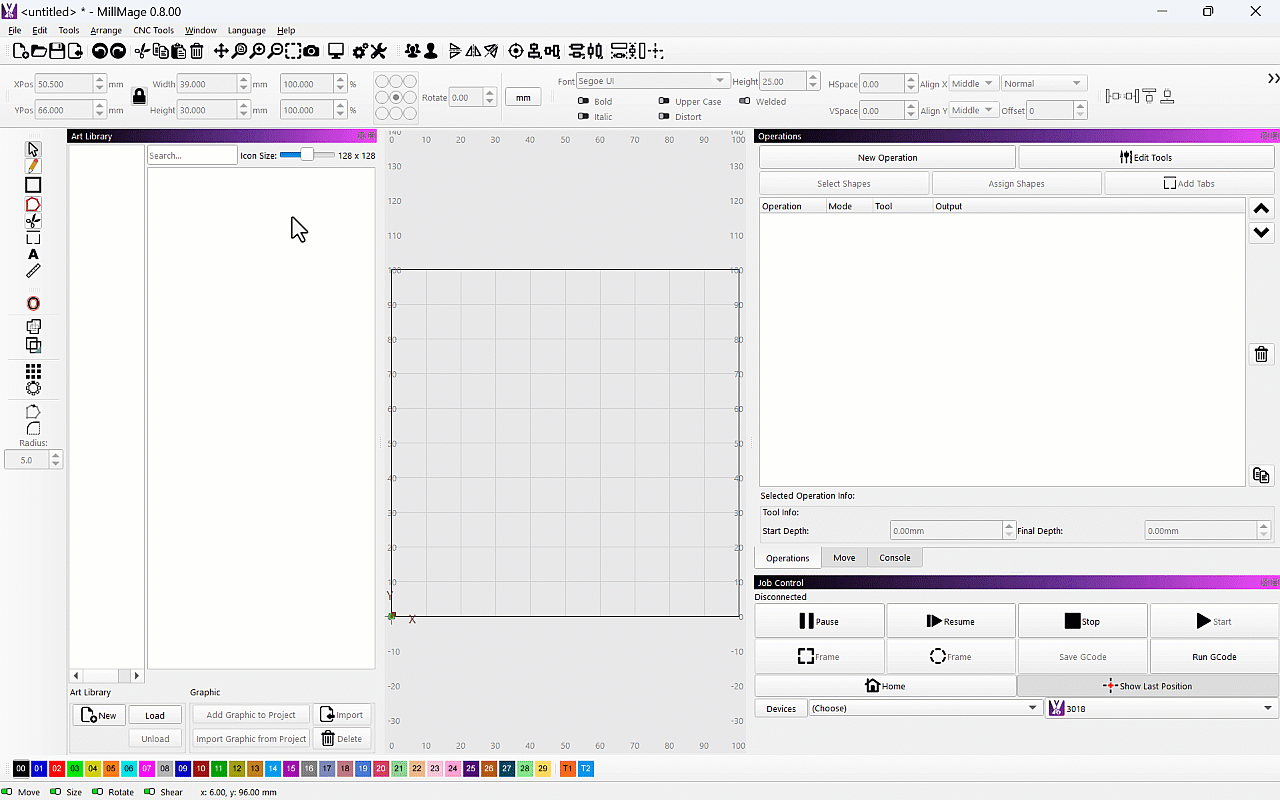

Toggle Side Panels¶
Click Toggle Side Panels or press F12 to disable all windows that are docked on the left or right side of the Workspace. Click or press F12 again to re-enable them.
Docking, Undocking, and Resizing¶
Windows¶
Click and drag any window from its top bar, or press the undock icon in the top right corner of the window, to undock it — you can leave the window floating anywhere you'd like, or re-dock it to another position.
The dockable area for windows is to the left, right, top, or bottom of the Workspace. You can stack multiple windows on top of one another vertically, or dock them so that they are tabbed together in a shared space.
By default, several windows are stacked and tabbed together on the right side, and no windows are visible on the left.
When you've dragged a window over an area it's possible to dock it to, the area will turn blue or light gray. Release to dock the window.
Note
The current positions of existing toolbars and windows, size of your computer's display, and the size of the MillMage window all determine where and how many windows can be stacked on top of one another — if you're unable to dock an additional window above another, it is most likely not a valid location. If your MillMage window is not expanded to the full size of your screen, try maximizing it.
Click and drag the side or bottom of a window or docking area to adjust its width. Note that each window has a minimum size requirement, and every window in that docking area must fit within the new width (including tabbed windows that aren't currently visible).
Toolbars¶
Click and drag any toolbar from the dotted line to undock it — you can leave the toolbar floating anywhere you'd like, or re-dock it to another position.
The dockable area for toolbars is above, below, to the left, and to the right of the Workspace. Toolbars can be stacked on top of one another or docked next to each other.
If the space in which several toolbars are docked is too small to show all of the buttons the individual toolbars contain, you'll see an arrow symbol in a collapsed version of the toolbar. Drag the dotted line to adjust the size of a toolbar, or click the arrow to temporarily expand a toolbar and show all tools it contains.
Space permitting, you can stack toolbars in spaces that are not occupied by any toolbars in the default layout.
Reset to Default Layout¶
Reset to Default Layout restores the layout of the full MillMage window to the same format it was in when you first installed and opened MillMage. If you've made lots of changes to your layout that you want to reverse all at once, or you've lost sight of the Job Control Window, Operations Window, Color Palette, or any other default windows or toolbars, use this option to get them back.
Resetting the layout doesn't reset anything else — your preferences, devices, and libraries are all preserved.
Go to Window → Reset to Default Layout to re-open and re-dock all default windows in their original order, while closing any that are not visible by default.
Holding Shift while clicking to open MillMage will also reset the layout.
