    Thank you for testing MillMage!

    Release Candidate users who see a "Your trial period has expired" notice when opening MillMage can request an extension to the update period by emailing the MillMage Trial ID to the Support team.

    Find your Trial ID in the License Management window. Email your Trial ID to [email protected] to start your request. The duration of the extended update period may vary.

Warning

The current version of MillMage is a Release Candidate — a stable version of software that is nearly ready for official release, but in need of additional public testing. Please report any unexpected behavior in the MillMage Software Questions section of our forum, including screenshots and as much detail as possible. Ask hardware compatibility questions in the MillMage Hardware Compatibility section.

Users new to MillMage should follow the Getting Started guide.

Video: How to Use a Release Candidate

This video features our sister software, LightBurn. While there may be slight differences in appearance and layout, the demonstrated processes are similar in MillMage.

Warning

This documentation is in active development and in a prerelease state. These documents are not complete and may include missing pages, broken links, and placeholders. Content is being updated as feedback is reviewed. Your patience is appreciated.

Multi-file Trace Image

Labs Feature

Labs features are new tools in development that we couldn’t wait to get into the hands of our users. Please experiment with caution, and report any unexpected results on our forum.

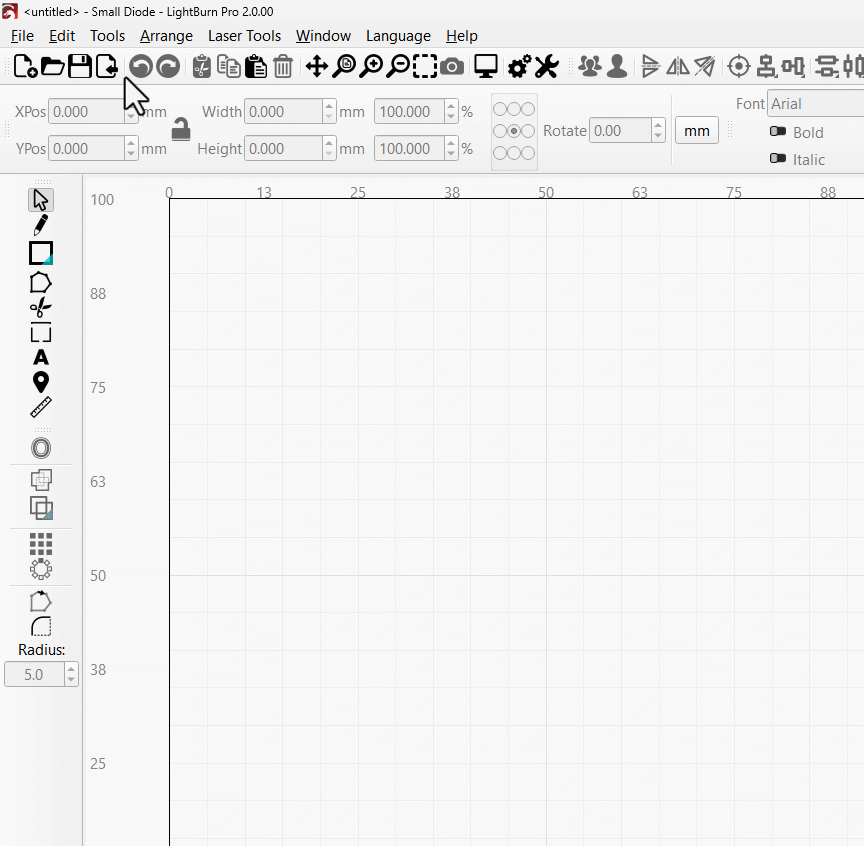

The Multi-File Trace Image tool automates image tracing for multiple files using LightBurn's Trace Image tool. Images are traced using LightBurn's default settings, and saved as SVG files in the same location as the source images.

Using Multi-File Trace Image

  1. Go to Tools → Multi-File Trace Image (Labs) to open the file import dialog box.
  2. In the dialog box, navigate to the folder containing images you want to trace.
  3. Select all the images to be traced. Use Shift to select a range of files or Ctrl/Cmd to pick multiple files individually.
  4. Click Open to select and trace files.
  5. Go to the folder containing the source images to find your traced SVG files.

For more help using MillMage, please visit our forum to talk with MillMage staff and users, or email support.
