Operations Window

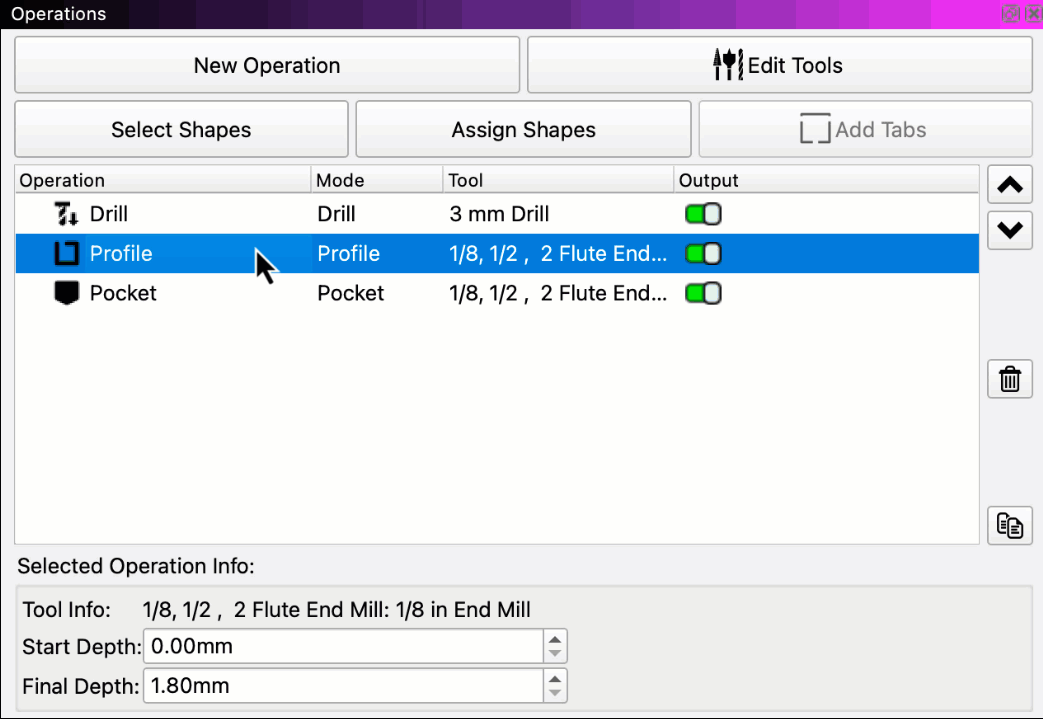

The Operations Window shows the list of operations in your project. From the Operations Window, you can assign different operations to specific shapes, control the order the machine processes the operations, adjust an abbreviated set of settings for each operation, and more.
To adjust all settings of a given operation, double-click any operation in the Operations Window to open the Operation Settings Editor, which contains all available settings.
Accessing the Operations Window¶
The Operations Window is located in the upper right of MillMage by default. If you have closed the Operations Window, go to Window → Operations to re-enable it. To restore it and all other windows to their default positions, go to Window → Reset to Default Layout.
Tip
The layout of MillMage is highly customizable. For more information on enabling and disabling windows and toolbars, or rearranging the default layout, see Customizing the MillMage Window.
Operations Window Options and Settings¶
New Operation¶
Click New Operation to select from a list of operation types. After selecting a type, the Operation Settings Editor will open, where you can select a tool and apply a number of operation-specific settings.
Note
Any shapes currently in your selection when you click New Operation will automatically be Assigned to that operation.
Edit Tools¶

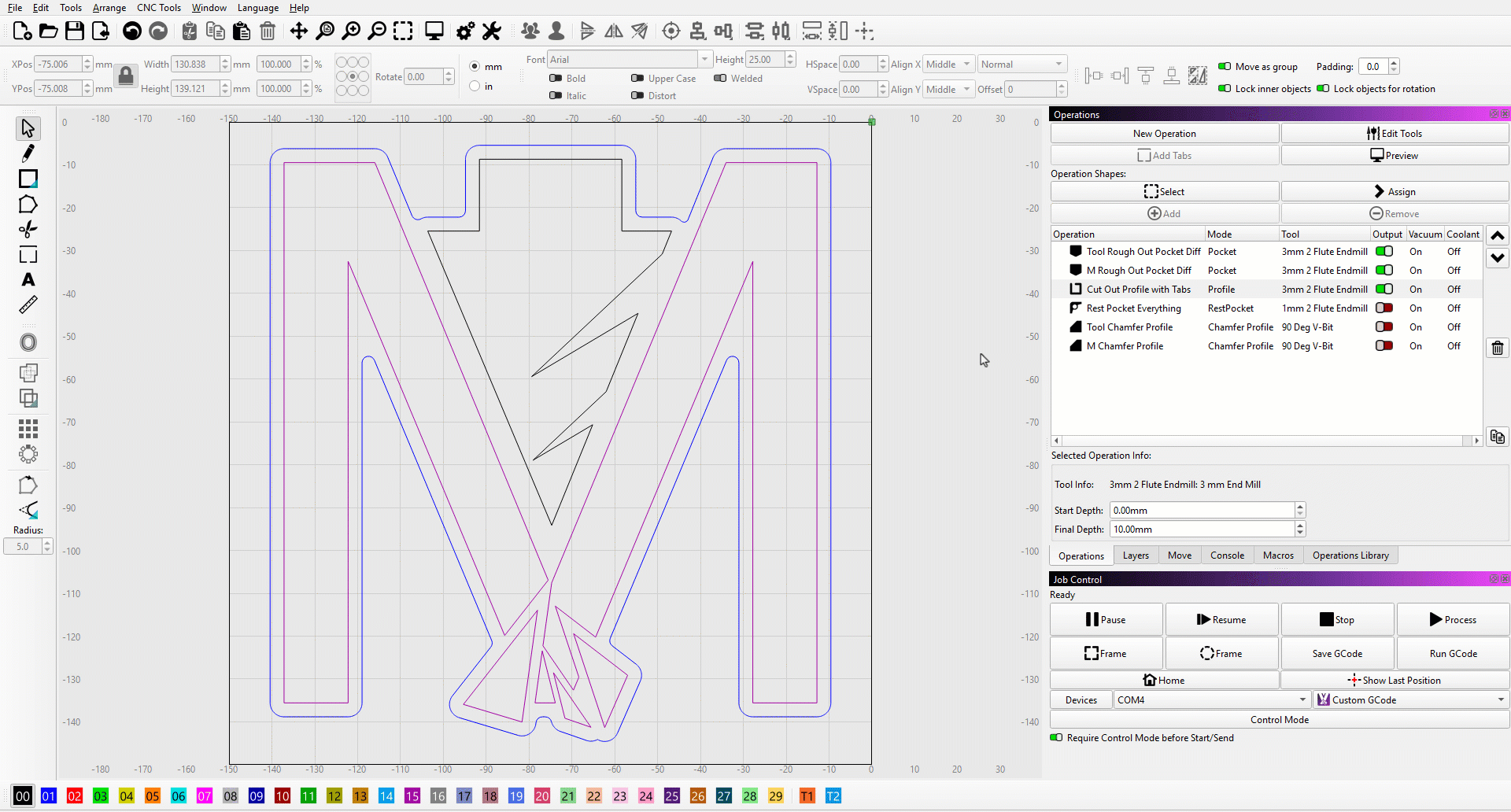

Click Edit Tools to open the Manage Tool Library window, where you can create and organize a library of tools for your machine.
Select Shapes¶
Selects all shapes in your Workspace that are assigned to the operation currently selected in the Operations Window.

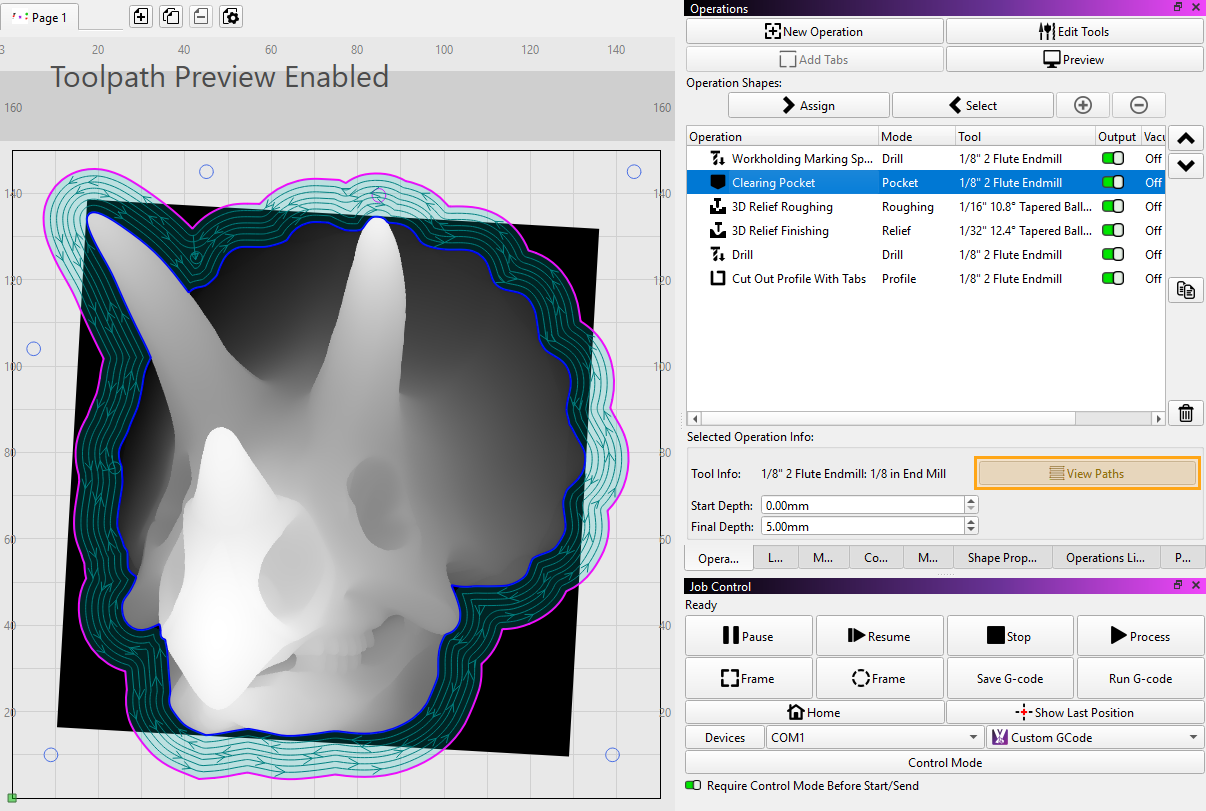

The outlines of shapes that are assigned to the selected operation are bolded in your Workspace. When they are also selected, they are both bolded and shown with an animated dash pattern.
See Selection Tools for more information on selecting shapes in your Workspace.
Assign Shapes¶

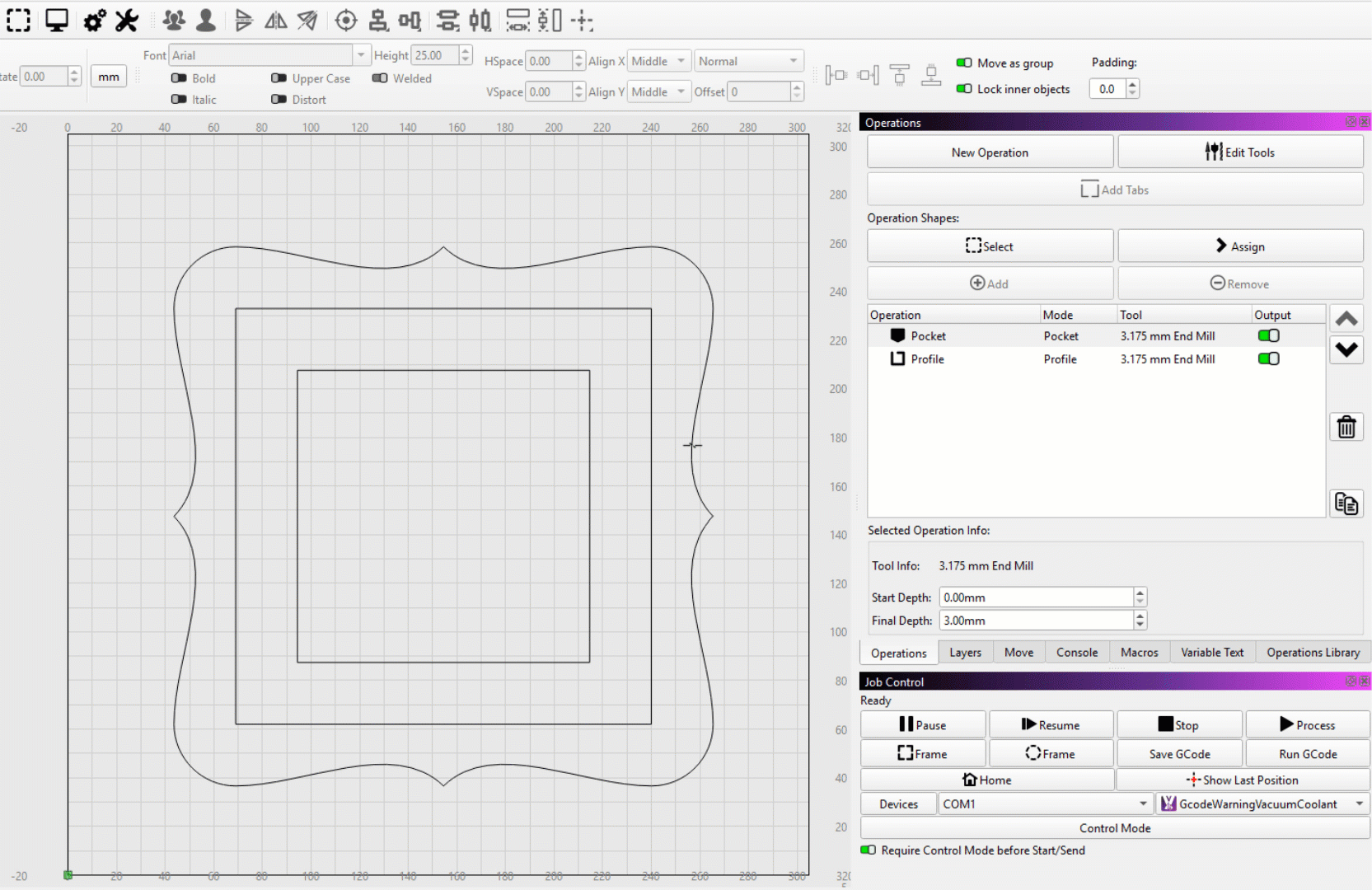

Assigns shapes currently selected in your Workspace to the operation currently selected in the Operations Window.
Click any operation in the list to select it. See Selection Tools for information on selecting shapes in your Workspace.
Note
Any shapes that were previously assigned to an operation will be unassigned, if they are not in your selection when you press Assign Shapes.
Add Tabs¶
Opens the Tab Wizard, where you can specify parameters to automatically Add Tabs to currently selected shapes.
Note
After Adding Tabs to a shape, you must also assign that shape to a type of operation that supports tabs, enable Tabs / Bridges in the Operation Settings Editor, and establish additional settings that control the size and style of the tabs.
Columns¶
Operation (Name)¶
Shows the operation name. You can adjust an operation's name in the Operation Settings Editor. Double-click an operation to open the Operation Settings Editor.
Mode¶
View the Mode of existing operations. An operation's Mode is selected when you create a New Operation and may not be adjusted afterward.
Tool¶
Shows the selected Tool for each existing operation.
To change the selected Tool, double-click an operation and click Select Tool in the Operation Settings Editor.
Tip

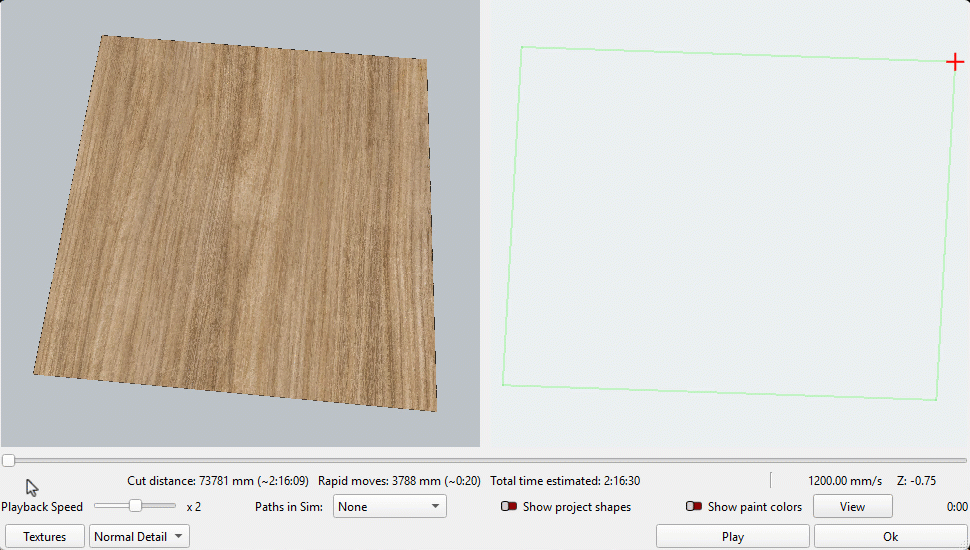

Use Preview to verify that only intended operations are set to output.
Output¶
Toggle to enable or disable which operations are output when you Preview, Start, or save a project in GCode format.
Selected Operation Info¶
This section shows a limited set of information about the currently selected operation. See Operation Settings Editor for more information on the below settings, and information on the full range of settings available for all operations.
Tool Info¶
Shows the selected Tool for the currently selected operation.
To change the selected Tool, double-click an operation and click [Select Tool] in the Operation Settings Editor.
Start Depth¶
Shows the Start Depth for the currently selected operation.
Final Depth¶
Shows the Final Depth for the currently selected operation.
Rearrange Operations¶
By default, operations are performed by your machine in the order from top to bottom in which they are listed in the Operations Window.
To change the order of the selected operation in the list you can click and drag to change its position, or select an operation and click the up and down buttons in the window.
Duplicate Selected Operation¶
To duplicate an operation, select it in the list and click the Duplicate button. An exact copy of the operation will appear at the bottom of the list.
Note
The duplicated operation is assigned to the exact same shapes as the original. Make sure to assign it to different shapes, if that is not your desired behavior.

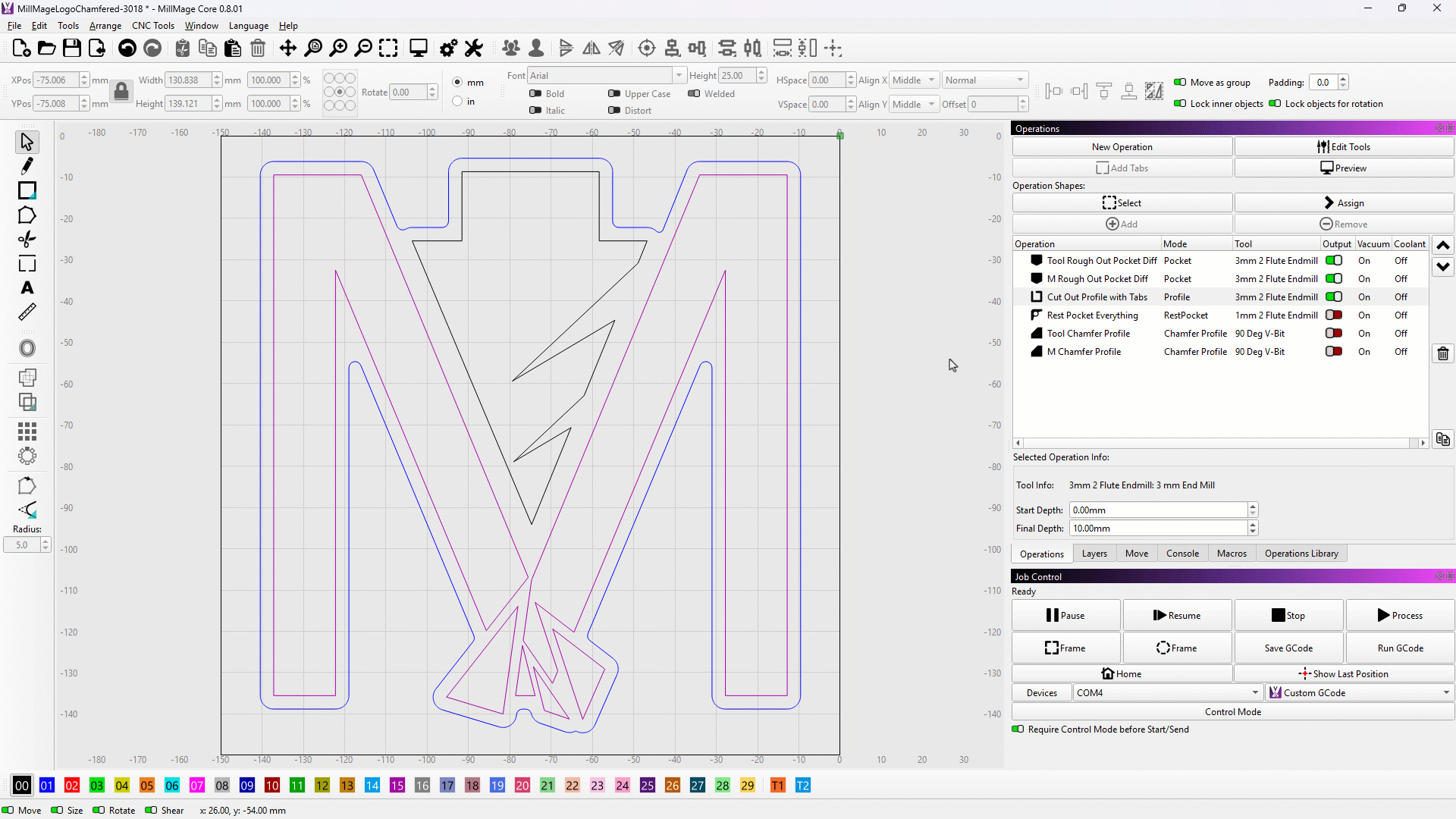

Delete Selected Operation¶
Click the Delete button to delete an operation.
Right-Click Context Menu¶

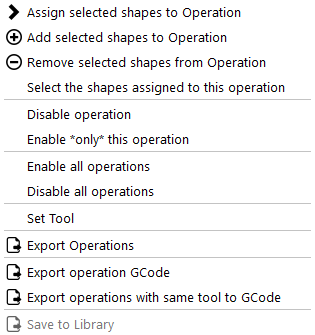

Right-click anywhere in the Operations Window to open a context menu containing several options for enabling and disabling operations, assigning operations to shapes, or exporting GCode for given operations.
Some options apply only to the currently selected operation — the last one you selected before opening the context menu, or the operation you were hovering over when you right-clicked to open the context menu.
Assign Selected shapes to Operation¶
This option works the same as the Assign Shapes button, to assign shapes currently selected in your Workspace to the operation currently selected in the Operations Window.
See Selection Tools for information on selecting shapes in your Workspace.
Note
Any shapes that were previously assigned to an operation will be unassigned, if they are not in your selection when you press Assign Shapes.
Select the Shapes Sssigned to This Operation¶
This option works the same as the Select Shapes button to select all shapes in your Workspace that are assigned to the operation currently selected in the Operations Window.
The outlines of shapes that are assigned to the selected operation are bolded in your Workspace. When they are also selected, they are both bolded and shown with an animated dash pattern.
See Selection Tools for information on selecting shapes in your Workspace.
Disable Operation¶
Toggles off the Output switch for the currently selected operation, disabling that operations when you Preview, Start, or save a project in GCode format.
Enable Only This Operation¶
Toggles on the Output switch for the currently selected operation, while also toggling off the Output switch for all other operations.
Disable All Operations¶
Toggles off the Output switch for all operations.
Export Operation GCode¶
Exports GCode for the currently selected operation only, while omitting GCode for all other operations in your project.
Export Operations With Same Tool to GCode¶
Exports GCode for the currently selected operation and all other operations that use the same tool, while omitting operations that use a different tool.
