MillMage 0.9: Pro Features Are Here!

We're thrilled to announce that MillMage Pro has arrived, and it's packed with new, highly in-demand features like V-Carving, Relief Carving, and True Nesting.

Download Here Buy MillMage Pro Upgrade From Core to Pro

We've worked day and night to get this one ready — which is actually not that hard for us, since we have team members in nearly every Earthly timezone. But we digress. More precisely, MillMage 0.9.00 is here, and, more precisely still, it's got lots of new tools available to both Pro and Core users, including Centerline Trace, Multi Page projects, and more!

Note

True Nesting, Center Line Trace, and Multi Page support will all also be coming to the next version of LightBurn.

Core users: how to try Pro before buying

To try out the new features before upgrading, head to Help → License Management and click the Trial Pro button to get access to all Pro features for two weeks.

Read on for more information on all the new features!

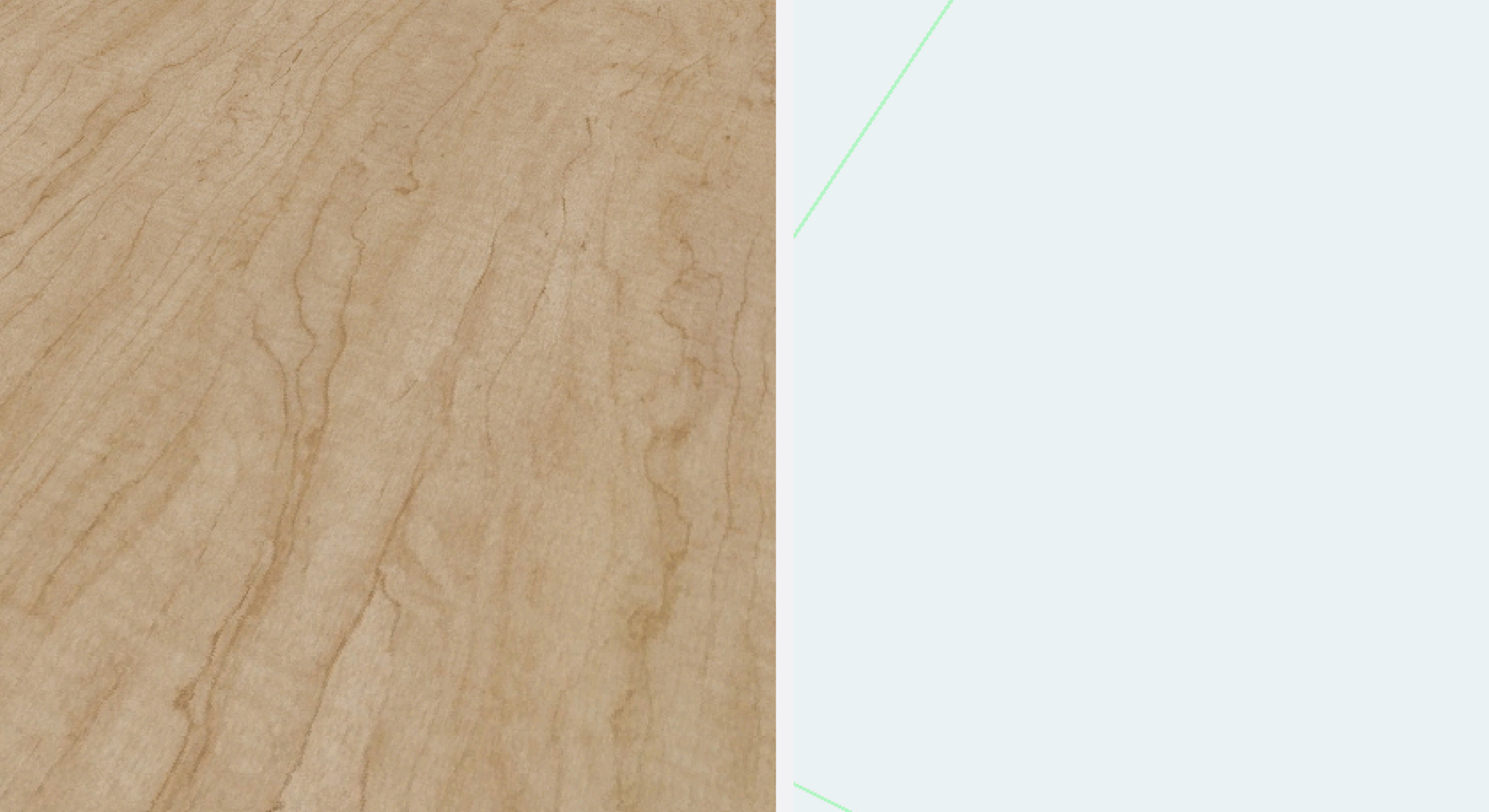

V-Carving (Pro-Only)¶

V-Carving is now available — need we say more? Probably not, but we will anyway.

Commonly used for sign making, decorative engraving, and object personalization, V-Carving is a method of dynamically adjusting the height of an angled V-Bit to perform variable-width carvings with precise details that you can't achieve with a standard end mill.

We're especially proud of the speed of our implementation — even with complex designs, MillMage can generate your toolpaths in seconds, then you're ready to send.

Learn More

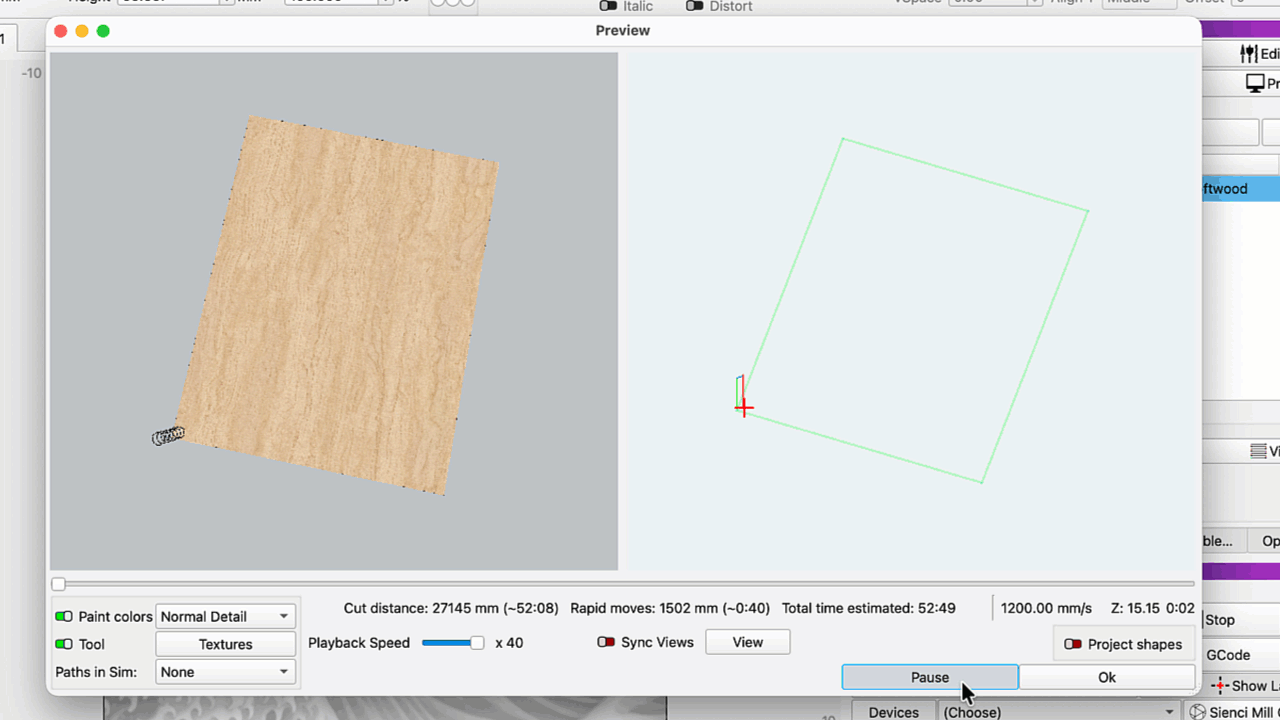

3D Relief Carving (Pro-Only)¶

Relief Carving utilizes a grayscale depth map to carve a three dimensional object into your material, varying depth based on shades of gray in the source image.

We've added not one but two 3D Relief Carving operations — Roughing and Finishing. Set up your Roughing pass to clear out the bulk of the material quickly, then use a Finishing pass to carve the fine details.

As with V-Carving we've built Relief Carving for speed — our toolpath computation is lightning fast, and we've optimized the paths themselves to save you carving time.

Learn More

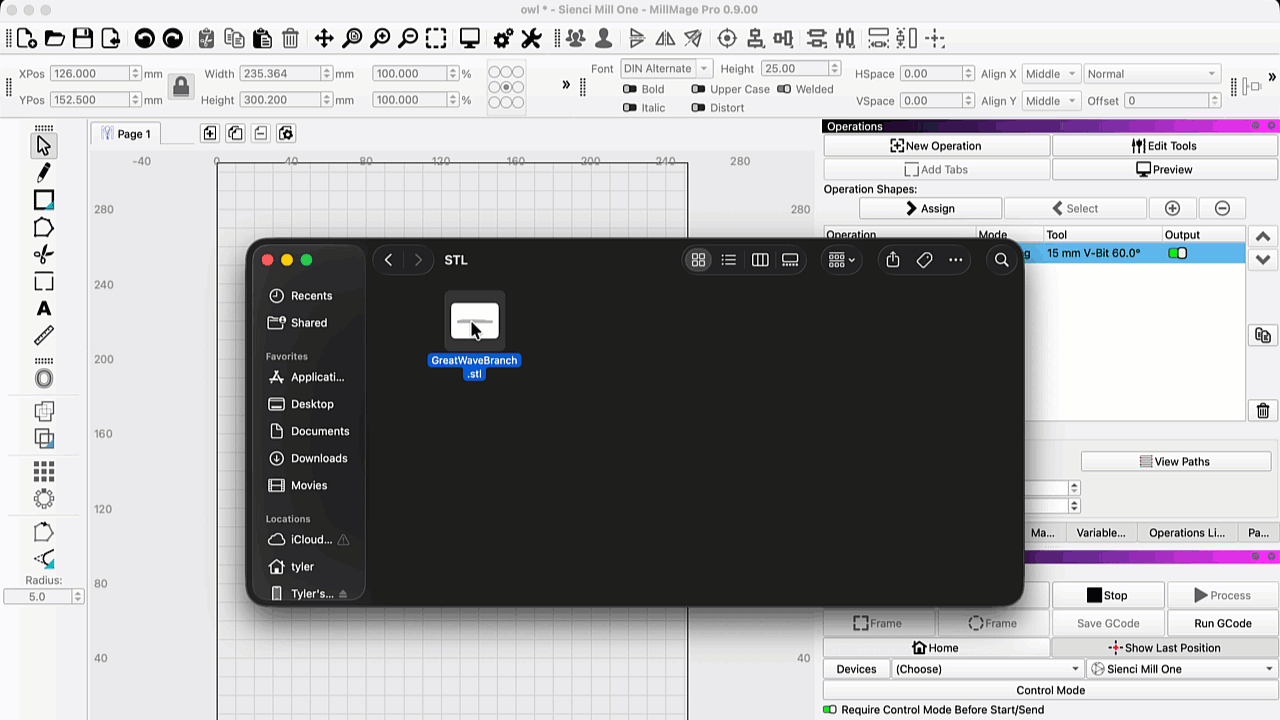

3D Model Import (Pro-Only)¶

But where to get your depth maps? There are plenty of options for sourcing depth map images directly, but if all you have handy is an STL, we've built a solution directly into MillMage.

Go to File → Import or drag and drop your .STL, .3MF, .OBJ, or other supported file* directly into your Workspace, then adjust its orientation and other parameters, and convert it to a grayscale image ready for Relief Carving.

Learn More

*We currently support .3mf, .amf, .obj, .off, .ply, and .stl file types.

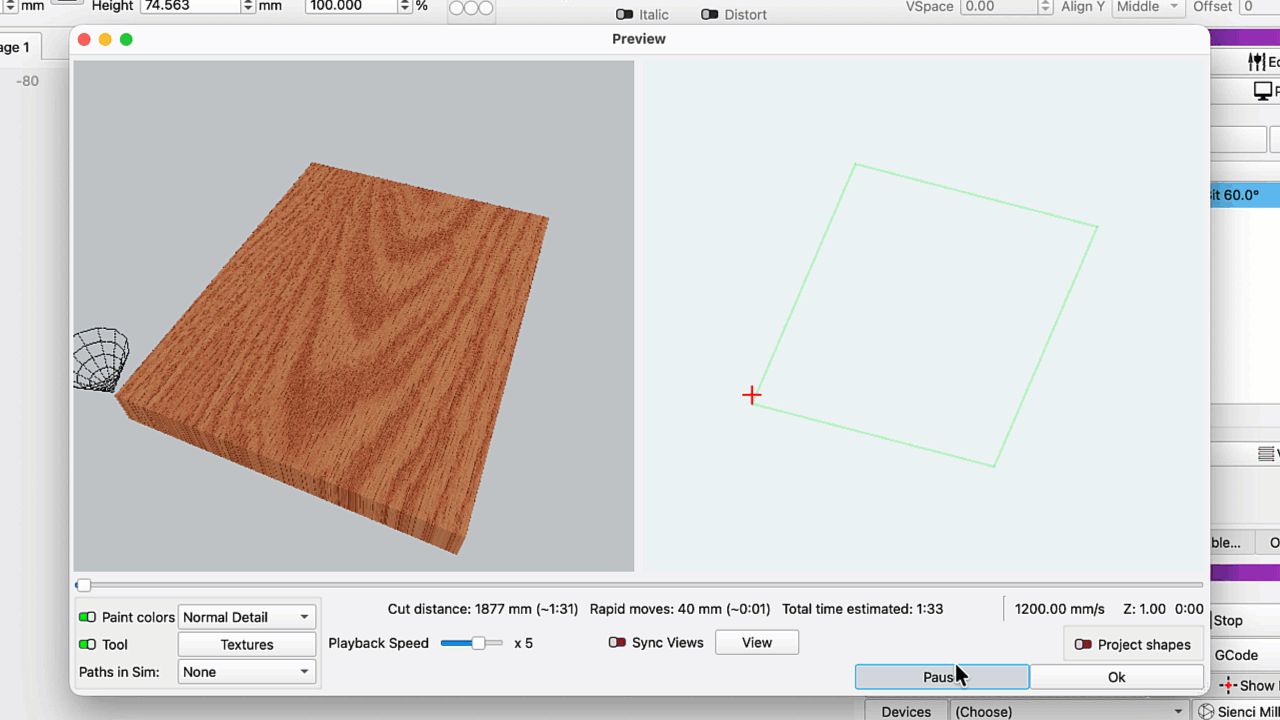

Texturing (Pro-Only)¶

Our final new operation in 0.9 is Texturing, a great way to add a bit of extra flair to your creative projects.

Texturing carves patterns into your material at varying depths. You can control the type, depth, length, and angle of the carving, among many other options.

Learn More

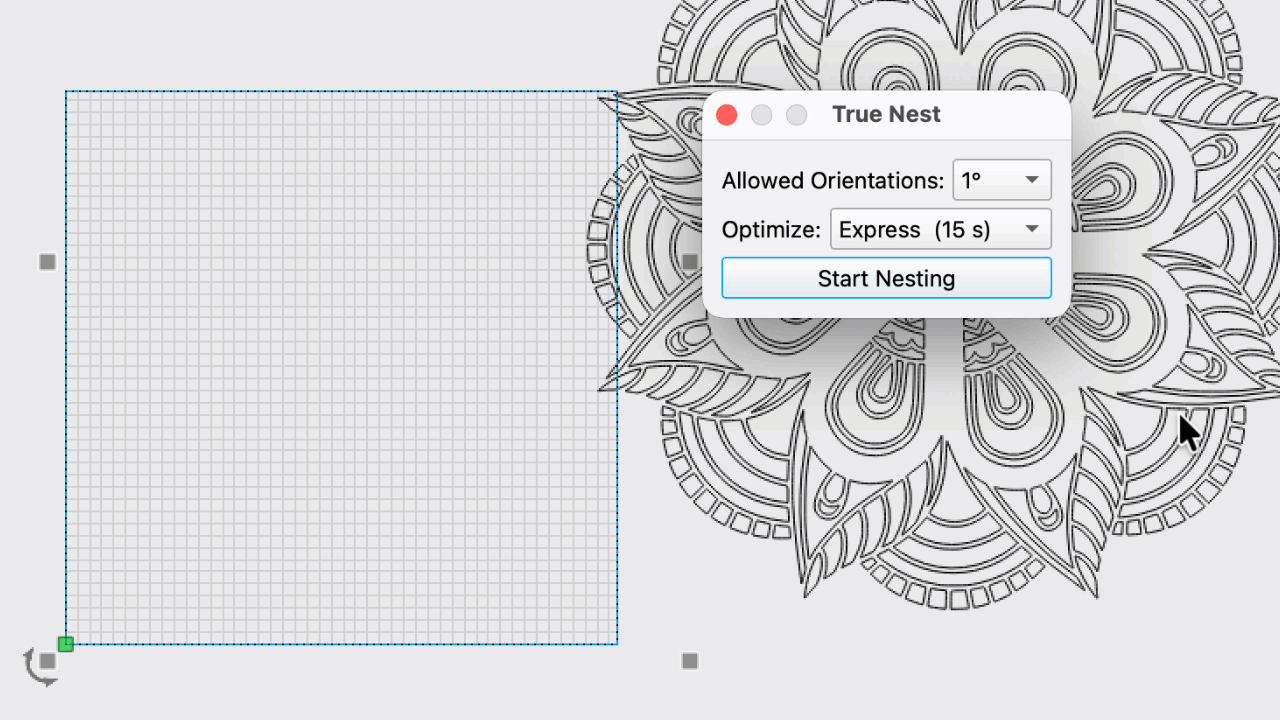

True Nesting (Pro-Only)¶

Laying out graphics for maximum efficiency results in huge savings in both job runtime and material costs — it's also just plain satisfying. With nesting, MillMage automatically arranges objects for you.

We implemented Quick Nest in our initial release — it's blazing fast, but only nests objects based on their bounding boxes. True Nest goes a step further, arranging objects not by their bounding boxes but by their actual contours, resulting in much more efficient layouts.

You can choose from four different optimization levels that control how long MillMage will spend calculating the most efficient layout. The less patient among us can choose to stop the calculation and use the current layout at any point in the process.

Learn More

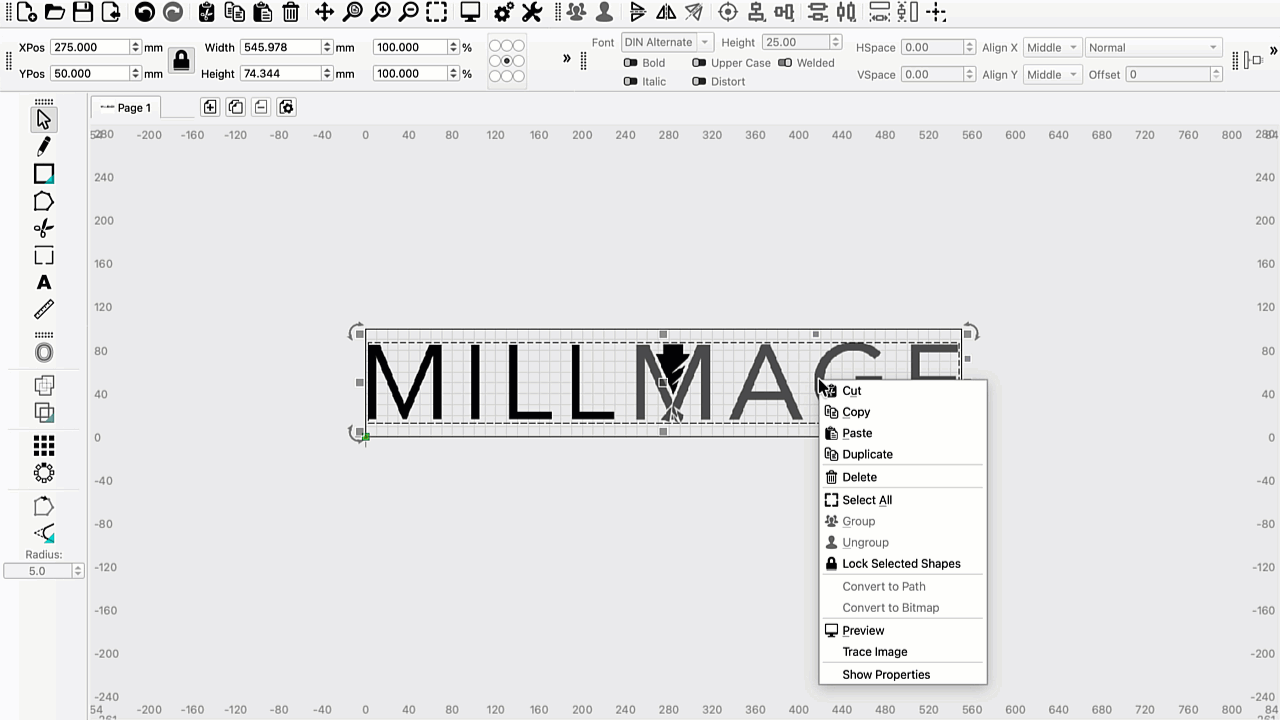

Center Line Trace¶

Rather than tracing the outlines of an image, Center Line Trace produces single lines running along the medial axis of traced shapes. It's great for logos, text, or sketches, and is especially valuable for generating vector graphics usable with a CNC router.

To use it, right-click an image in your Workspace and select Trace Image, then toggle on the Center Line Trace switch.

Learn More

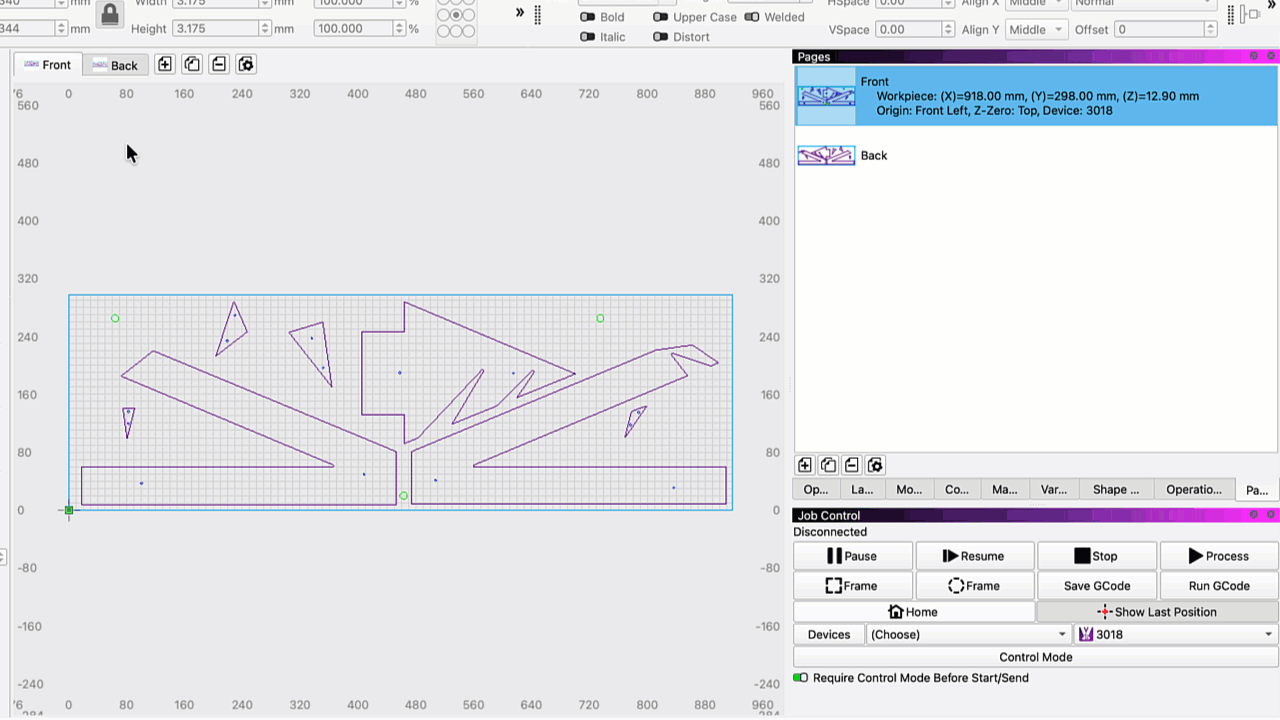

Multi Page¶

We now support projects with multiple pages. You can create, select, re-name, delete, duplicate, and adjust settings for pages using the controls at the top of your Workspace, or in the new Pages Window.

Learn More

Trochoidal Pocketing (Pro Only)¶

We've added support for Trochoidal paths for Pocket operations. Similar to our initial implementation of Trochoidal Profiles, Trochoidal Pocketing works by creating a path of circular cuts, resulting in reduced radial engagement and lower stress on both tool and machine. The reduced stress of the trochoidal path enables better chip evacuation and allows for deeper depths of cut.

This process enables users with low stiffness/power CNCs to machine materials they might not otherwise be able to, and those with stiff/powerful CNCs to machine much more efficiently.

Other Notable Additions¶

MillMage can now directly connect to and control CNC routers with Duet controllers over HTTP.
Click the View Paths button in the Job Control Window to see the toolpaths MillMage will generate and send to your machine overlayed in your Workspace.

Changelog¶

Click to Read our Full Changelog

Existing Feature Updates¶

Start point drawing improvement
Map3D faster rendering
Made 'Units' toggle clearer
Another ~6% speedup
More optimal raster pocket traversal
Added Relief operation
Cached operation outputs - much faster cut build / preview cycle
Better partial redraw logic for preview/sim
Added new controllers to drop down menu, with updated gcode defaults as a result.
Adding project out of bounds checks to account for being over the machine limits with the project depending on the coordinate offsets.
Control Mode drawing improvements
Created a dialog To edit Workpiece Origin Coordinates from the Move Widget
Allow read of simulation values for custom gcode machines if they are GRBL flavour.
Cleanup code for improper use of CutBuilder Pointer in the static sim widget
Improvement to Operations View to show warnings and errors and hint info.
Added tool drawing to 3d preview
Improve preview interaction rate
Optimize Fluting paths
Improved depth sim speed for tapered bits
Allow Cut Settings values Start Depth and Final Depth to be entered and kept as a percentage instead of in specific units.
Changed the Light Mode, Preview Travel Move - Line Color to the same blue as in Dark mode to be more consistent and different from Cut moves.
Select when pasting from other apps
Change Framing to handle Tool Offsets for Framing according to Cut Type Used and added ability to frame selected shapes.
Save & restore Undo History position & size
Changed QNumEntry to allow comma or dot for the decimal place and ignore previous commas and dots, show thousands separator as thin space.
Show 'Cmd/Ctrl-Arrow:' instead of 'Ctrl-Arrow:' in settings to indicate Mac command.
Filter path & weird chars out of the document title in exported AI files
Save simulation quality setting with project
For V-carve, if startDepth is not zero, drop slower
Increase the font preview limit to 4000 fonts, speed be damned
Control Mode, added GCode search options and jump to start of Operation in the right click menu of the GCode List.
Allow cut, copy and paste of CNC Operations in the Ops Panel.
Update to latest VC Redist and remove unneeded version from installer
Break apart and Auto-join now preserve tabs
Improve error message when running Preview or Control Mode or job, and there is nothing to output.
Added custom shortcut keys for user defined macros.
Don't validate numeric fields on each typed character
Add app version number to prefs
Change the Export GCode "Tool" column to use the tool's Display Name instead of diameter/type
Double-click in node edit to convert to path
Highlight the current preview texture
Improve theme so selected items and progress bars retain part of their original blue color instead of turning white for light theme and black for dark theme.
Warp and Deform weren't retaining bitmap properties
Improved path generation of large-stepover 'missing regions' pass
More optimal v-carve output ordering
NewDeviceWizard shows a message that user does not need to edit comms settings except when resolving problems
Added Z Block probe type to probe wizard
Ensure consistent G-code in messages and gui, capitalize Error: in console.
If user runs probe wizard after run start, show a warning before starting the job to remove the probe and wires.
New comm status of Not Responding so error message can distinguish between disconnected and not responding.
Changes to License dialog to be more clear and have links to web pages for help
Auto un-cache pro op errors
Auto-exclude bitmaps from pocket operations
Only change active device on project load, not on Page Change.
Closing the tool library window now saves pending changes; the Cancel button still discards them.
When no compatible tool exists the operation editor shows an empty tool setup and disables OK until a tool is selected.
Added better multi mesh support for 3D Import and depth map conversion.

Bug Fixes¶

3d preview multithread ARM issue
New project with no devices would crash
Choosing the SAME texture shouldn't modify the project
Fix to allow Ctrl-Q to close MM even when in Control Mode.
Prevent "Missing GCode For selected settings" warning in Device Settings dialog when inherited placeholder is valid
Fix confusing Troubleshooting Dialog by formatting all messages as simply as possible
Machine size warning was backwards
Chamfer wasn't properly using start/final depth values
Ops without shapes would get assigned to shape 0
Add space after emitting G53
Handle malformed xml data better and report more issues without crashing when loading a damaged or incorrect file.
Fixing the machine boundary calculations for the project out of bounds warning.
Fixed the Tool and GCode cursor positions when device units are in inches.
Some escaped characters were causing strings to visually repeat in the console log
New Device Wizard should reset Dwell when a new Flavor is chosen
Remove unnecessary M9 coolant off command at end of jobs
GRBL M3 Flavor jog panel got broken when switching from another Flavor that had continuous jog
FluidNC support was missing some connections
Updated GRBL-STM GCode Flavor to enable continuous jog and probing
SVG with OffsetFill didn't export correctly
Cleaned up duplicated mode & Z outputs
Zero Axis buttons were incorrectly greyed out for some protocol flavors
Fluting Start Point wasn't respected
Fix texture spelling
Removing the annoy-a-tron warning until we have a better solution to convey the problem.
Suppress Operations Export ATC warning when only one tool in use
Fixing minor syntax problem.
Deform tool issues with grouped base shapes
Limit ramp angle to 1 to 89 degrees
Removing the remaining annoy-a-tron warnings.
Custom gcode rotary diameter setting was never emitted
Don't escape tab characters in the console log
Fixed failure to read xml file if ANY unexpected key exists in the file, and key name case mismatch for tool VendorURL and Notes.
Custom GCode was double-scaling imperial position queries when $13=1
Ungrouping an array with mirrored objects loses the mirror transform.
Un-grouping native shapes after mirror transform caused flip
Removing tiny prims could cause open shapes
Fix error with drill tip measurement
Add unit modal to the beginning of the probe commands during the wizard.
Add/remove shapes in an op didn't work with grouped shapes
Texture op didn't work with Z-Bottom origin
Custom GCode CanZeroAxis was not always returning a value for less used flavors
Unprintable escaped characters in Custom GCode example blocks were appending odd HTML characters
Rest Pocket could fail on very tight tolerance areas
Tab changes didn't clear op cache
Fixed crash in Find My Laser when e-stop is engaged. WaitForCompletion and TerminateExecution now check doQuit for graceful thread shutdown.
Fixed device discovery polling sleeping 20 seconds instead of 20 milliseconds in ConnectJCZDevice, ConnectEZC3Device, and ConnectBSLDevice.
Fix start depth & top/bottom for relief
Don't set file type association in pre-release mode
Fixed typos in Quick Nest messages
Fixed potential memory leak when validating custom gcode settings.
Don't intercept the numpad while edits are active
Fixed loading units when coming from older versions
ZigZag ramp didn't work for vcarve with start depth != 0
Closed shapes could become open during tiny line removal if the line connected to the first node in a shape
Select Results option on Copy Along Path would crash
A change to SpatialPrimQuery for cut optimizer broke ramp fill
Output toggles were changing when outputting gcode
Ungrouping text that was bent distorts or loses the bend
Check for last control units was using the wrong parameter
Fix issue with automatically enabling tabs on add
Ensure web files are always loaded
Show correct offset table when reading scanning offsets
Fixed MessageBox display of Rich Text vs Regular Text messages.
Fixed title casing in probe configuration
Some Custom Gcode values were getting unit conversions when they shouldn't
Removing SSL certificate generation and usage for the API to be HTTPS
Exporting to SVG could crash with inner shapes that had no operation
Launching and immediately closing could cause a crash in the webtool loader
Make virtual keyboard show when using tablet and touching a spin box or custom num editor (Windows only)
Changing device (even on startup) set modified flag
Medial offsetter should make closed shapes
Fix Bitmaps with invalid XFORM causing crashes and problems loading and in UI
Bitmap relief transform was incorrect if grouped
Fixed title casing in require control mode toggle
Virtual array caused problems with cached ops
Stale pointer could cause crash when switching units
Cached operation errors prevented op from rebuilding
Cached tool info not updated on tool change
Fixed issue causing viewport of 3D import dialog not rendering.
Tell QSerialPort not to restore the pre-open DCB on close so closing the port no longer reverts DTR.
Further hardening against race condition crash
Fixed typo in depth map converter
WebTools was only generating a timestamped URL once at start
Fixing the Buy MillMage button wrongly displaying "Buy LightBurn" on first start.
Medial offset missed some segments
Layer names were not being copied to cut library
Min tabs was not always being respected
Apply Mask allowed reusing a shape already applied as a mask
Engrave Acceleration Z in Additional Device Settings was being read from the controller as incorrect units
Default tool def should be marked as a project tool
Fix numeric entry equation parsing issue with comma vs period
Probe definition dialog had different input limits that probe execute.
Probing allowed 0 value for XYZ search distance. Changed to sensible minimum.
Prevent probing from trying to continue sequence if failure occurred.
Updated dogbone tool to use double-precision math to reduce failure cases
Keep edited workpiece dimensions when switching device profiles in the project wizard.
Handle new text width properly after a copy paste to prevent font position changes.
Renderbuffer being rebuilt constantly due to incorrect comparison.
Coordinate pocketing parameters in UI
Fix double jpg extension on export
Set Qt::AA_DontShowIconsInMenus to false
Fix title case across all entries in the right click menus.
Fix framing bounds computation to be more accurate to selected outputs.
Bad slot virtuals caused some update functions to not be called in the operations UI
Fix to trim tool not working for some cases.
Select all shapes for an operation accidentally included shapes from other pages.
Relief roughing / finishing issues
Toggle Panel visibility was missing toggling the Pages panel.
Pocket lift retracts were checking the wrong bounds
Final offset pass bug
Fixed issue causing all library tools to be treated as project tools, preventing tool deletion and certain modifications.
Roughing shapes with holes that contained other shapes could repeat some areas
Solve error generating shapes after deleting shapes or pages.
Fixed issue causing device settings dialog to cutoff custom gcode options.
Removed limit 50% maximum from stepover in tool library.
Fixed a bug causing the preview window texture tooltip to display the same image for all textures.
Initial 3D relief plunge with Z-bottom bug
For all cut types warn in the GUI if startDepth is below the stock depth. For Texturing warn in GUI and if generated cut is below the stock depth.
Fixed inability to enter start or final depth percentage above 12% when units in inches
Fixed Sync Views toggle to save state
Fixed issue where framing could use the wrong origin offset
Custom GCode was not using custom header when framing
Duet / RRF HTTP "You are currently streaming to your device" on shutdown when unconnected
Removing spiral entry type for 3D roughing passes
Fixed RestoreDefaultLayout to work in Qt 6.11
Spans of zero length were being kept, breaking the math in texture ops
Add network permissions to plist for Mac OS 27
Fixed copied tool library categories not being saved because duplicated tools shared guids with the originals.
Tool library saving no longer drops identical tools that appear in more than one category, and empty categories are now saved.
Only allow one tool category creation at a time
Re-Exported images would sometimes be rotated 180 degrees from expected
Clicking stop button in jog control dock panel correctly returns main window controls to correct state.
Adding the TLO reset sequence to manual Z0 set button.
Tool library changes are now saved automatically before creating or loading another library, and New Library no longer clears the current library if the file dialog is cancelled.
Cancelling the tool library dialog no longer leaves stale tool lookup data.
New operations now default to the first library tool compatible with the operation type instead of a generic end mill.
The tool picker no longer allows creating or selecting tool types invalid for the current operation, and cancelling the picker no longer applies the selection.
Fix circle detection logic
Fix initialization of the cncprobesettingswidget fields for in inputs
Fixed Tool Library bug preventing new or duplicated tools from being deleted without closing and reopening the library.
Fixed tool library bug that prevented new tool copies from displaying a preview.
Fixed bug causing incorrect background color of pattern preview image in texture operation settings.
Fixed texture operation bug causing incorrect scale and offset of pattern preview image when raster angle is not 0°.
Newer Qt was no longer resolving host names in some cases
Fixed Virtual Array cuts not being generated.
Incorrect warning when cross-app file opening
Pocket offset / large stepover fix
Pocket with no output not warning
Fixed leak of shapes when deleting an array and other minor resource leaks.
Uninitialized vars in QNumEntry cause erratic value changes randomly
V-carve, fixed hang if max depth limit was unset, ensure progress gets updated and cancel button works for complex V-carve.
Fixing the pause/resume sending double pause commands during a g-code command stream.
On tool load fixed load defaults for fluting and refreshed warnings
Shape Properties Panel needed to use QNumEdit to support flexible number input, units conversion, and formulas.
Fix and unified the numpad jogging code in edit and control mode and disable it when focus is on a text entry type of widget.
Refresh position readout after discrete jog / work-offset change
Project Setup should change the connected device if user changes it.
Fix fatal crashes caused by keyevent filter.

User Interface Updates¶

New Warning icon added with better contrast at smaller sizes.
Tab key now changes focus on Tool Library notes text input instead of indenting.
Tool Library Feeds and Speeds layout rows now have uniform heights.
Created outlined labs icon with white border for visibility on dark device logos
Added checks to ensure the Tool Library dialog window is not drawn outside the screen boundaries.
Improved visibility of toolbar drag handles and overflow arrows.
Added padding between items in the main toolbar.
Changed layout of probe settings dialog from portrait to landscape so it will fit correctly on smaller displays.

New Features¶

Show Custom GCode Flavor in Device List
Marlin 2.1 support in MillMage
Support for Duet / RepRap GCode Flavor
DragonDrop file transfer wizard - initial iteration
Ability to wrap web-based tools into integrated app features
Center Line Trace
Adding a local & network-available REST API.
Adding DragonDrop support per device profile.
Adding target buffer override for gcode devices in case the firmware doesn't or incorrectly reports the buffer size.
Added 3D model import feature.
Added depth map creation from imported 3D models.
Add filtering for FluidNC flavor to clean [MSG] spam in the Console
New Duet/RRF HTTP flavor for Custom GCode
Support for Duet/RRF M291 message box commands
Added AcceLaser hybrid Gantry + Galvo device support.
Added LiDAR surface scanning with height-compensated engraving.
Adding default gcode file extensions for custom gcode flavors

Code Refactors¶

Add LE_DeviceReconnect and send event from device settings dialog
GCode Thread protocol checks
SupportsToolProbe() query method added to GCode Protocols
WaitForProbeParse() modified for Marlin
Cleaning out some warnings
Initial import of WebApi library and creation of connection type
Modified device shutdown logic to cleanly release device resources
Disallow LaserEvents after mainwindow has already closed
Added GCodeDisplayFlavors and UserGCodeBlockManager::FillFlavorComboBox
Split or reassign protocol destructors to Release methods

Infrastructure¶

Added core_icontools to build system via CoreGui.pri and core_code.cpp

Miscellaneous¶

Allow trialing Pro mode with a valid Core license
Update Buy and Upgrade links to be ready for MM Pro
Allow pasting of valid URLs into Web Tool browser
Added legal warning that must be accepted before SVGNest can be used
Added 'Paste in Place' to right click context menux

For more help using MillMage, please visit our forum to talk with MillMage staff and users, or email support.
